PistoFram Accumulator

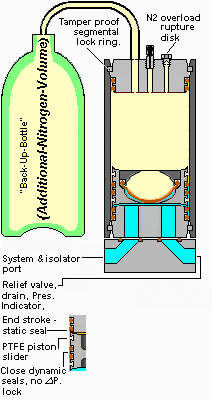

A PistoFram accumulator has a light weight piston where the dynamic seals are aligned with the piston center, and where both the gas and liquid skirt ends have swiss replica watches graphite filled Teflon guide rings. The hollow piston center contains a diaphragm which is able to accept or produce liquid flow by instantaneous deflection during the millisecond or so taken for piston mass acceleration; producing faster response characteristics than from rolex replica watches traditional glued balloon in can bladder accumulators. At gas or liquid end of stroke the central diaphragm flow hole cannot align with the inlet out porting that is spaced either side of centerline, thus there is no encumbrance to flow of anti replica rolex extrusion devices.

Main Features: Solid Light-Weight Piston, Close-Coupled Seals, Dual Graphite-Filled Bearing Strips for Low Stiction, Various Seal Elastomers, Zero Leakage When Shut Down ,Super Fast R Locking, Flow-Thru Port Facility.

Part Numbers / Sizing

Small
PiF-1.1Lt-80-Br210-N-1/2"BSP-SS
PiF-2.1Lt-80-Br210-N-1/2"BSP-SS
PiF-3.1Lt-100-Br210-N-3/4"BSP-SS
PiF-4.7Lt-100-Br210-N-3/4"BSP-SS
PiF-6.5Lt-100-Br210-N-1/2"BSP-SS

Medium
PiF-10Lt-125-Br210-N-1/2"BSP-SS
PiF-15Lt-125-Br210-N-1/2"BSP-SS
PiF-20Lt-150-Br210-N-1/2"BSP-SS
PiF-30Lt-150-Br210-N-1/2"BSP-SS

Large
PiF-40Lt-185-Br210-N-1/2"BSP-SS
PiF-50Lt-185-Br210-N-1/2"BSP-SS
PiF-60Lt-200-Br210-N-1/2"BSP-SS
PiF-80Lt-200-Br210-N-1/2"BSP-SS


Information About: Part Numbers / Sizing
  • The number that is followed by the letters "Lt" denotes the number of liters nominal volume. There are 61 cubic inches in one liter.
PistoFram

Hydropneumatic Accumulators / Hydraulic Control Engineers
Hydro-pneumatic / Hydraulic Accumulator Drawings:
9i / 2750p  |  18i / 2500p  |  36i / 2500p  |  72i / 2400p  |  110i / 2250p  |  146i / 2000p
