Hydrotrole Ltd. Hydraulic Control EngineersHydroTrole

IndAcc Accumulator

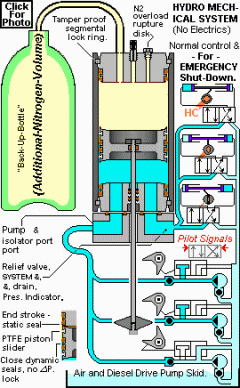

An IndAcc accumulator has a light weight piston where the dynamic seals are aligned with the piston center and where both the gas and liquid skirt ends have replica watches uk graphite filled Teflon guide rings. The IndAcc has polished rod attached to the piston center, passing through a chevron stuffing box seal, centrally of the liquid end plug; that enables volume stored to be known.

Main Features: Solid Light-Weight Piston, Close-Coupled Seals, Dual Graphite-Filled Bearing Strips for Low Stiction, Various Seal Elastomers, Zero Leakage When Shut Down, Super Fast R Locking, Flow-Thru Port Facility.

Part Numbers / Sizing

Small
Ind-1.1Lt-80-Br210-N-1/2"BSP-SS
Ind-2.1Lt-80-Br210-N-1/2"BSP-SS
Ind-3.1Lt-100-Br210-N-3/4"BSP-SS
Ind-4.7Lt-100-Br210-N-3/4"BSP-SS
Ind-6.4Lt-100-Br210-N-1/2"BSP-SS

Medium
Ind-10Lt-125-Br210-N-1/2"BSP-SS
Ind-14.9Lt-125-Br210-N-1/2"BSP-SS
Ind-19.8Lt-150-Br210-N-1/2"BSP-SS
Ind-29.7Lt-150-Br210-N-1/2"BSP-SS

Large
Ind-39.6Lt-185-Br210-N-1/2"BSP-SS
Ind-49.5Lt-185-Br210-N-1/2"BSP-SS
Ind-59.4Lt-200-Br210-N-1/2"BSP-SS
Ind-79.2Lt-200-Br210-N-1/2"BSP-SS


Information About: Part Numbers / Sizing
  • The number that is followed by the letters "Lt" denotes the number of liters nominal volume. There are 61 cubic inches in one liter.
IndAcc

Hydropneumatic Accumulators / Hydraulic Control Engineers
Hydro-pneumatic / Hydraulic Accumulator Drawings:
9i / 2750p  |  18i / 2500p  |  36i / 2500p  |  72i / 2400p  |  110i / 2250p  |  146i / 2000p

>> Contact HydroTrole <<
